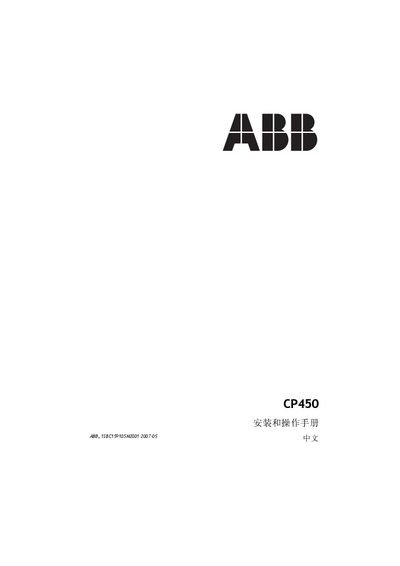

CP450 Installation and Operation Manual, introduces product installation, use and maintenance information.
This manual covers safety precautions, installation requirements, grounding, and wiring for the ABB CP450 controller. It includes detailed specifications such as dimensions, IP rating, power supply, communication ports, and environmental limits.
The document also describes the contents of the packaging, step‑by‑step installation procedures, and operating instructions to ensure proper use and maintenance of the device. This manual is written in Chinese.
| IP rating | IP65/NEMA4 |
|---|---|
| COM1 interface | RS232/RS485 |
| COM2 interface | RS232/RS422/RS485 |
| COM3 interface | RS422/RS485 |
| Ethernet | Supported |
| USB host ports | 2 |
| USB device ports | 1 |
| RAM | 512 KB |
| CPU | 32‑bit RISC |
| Display | Color TFT, 640 × 480 px, 64K colors |
| Operating temperature | 0 °C – +50 °C |
| Storage temperature | -10 °C – +60 °C |
| Relative humidity | 20 % – 90 % RH |
Installation and operation must be performed by qualified personnel, avoid liquids and metal contact, ensure proper grounding, and comply with EMC requirements.
The controller operates from 0 °C to +50 °C, can be stored from -10 °C to +60 °C, and works in 20 %–90 % relative humidity.
