This manual describes how to use the LED operator option for the Yaskawa AC Drive, including product overview, receiving, components, installation, basic operation, related parameters, fault diagnostics and specifications.

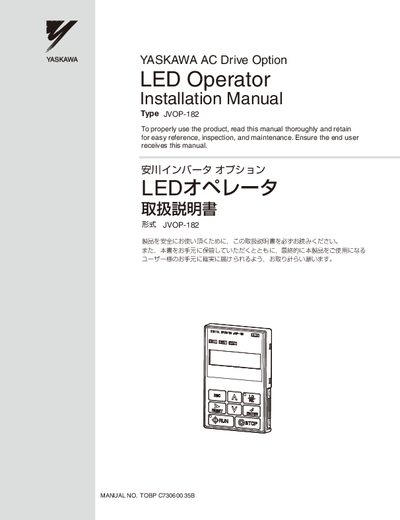

This manual provides safety information, product overview, and detailed instructions for installing the Yaskawa JVOP-182 LED Operator option. It explains the purpose of the option, applicable drive models, and required safety precautions before installation.
The guide walks through receiving inspection, required communication cable, wiring diagrams, parameter settings, basic operation, and fault diagnostics. It also includes specifications, revision history, and contact information for Yaskawa support worldwide.
| Maximum operating distance | 3 meters |
|---|---|
| Communication cable | Not provided; must be purchased separately |
It can operate the drive at a short distance up to 3 meters.
A communication cable is required; it is not supplied with the option and can be purchased from Yaskawa or a recommended LAN cable can be used.
The option can be used with A1000, T1000, and 1000 drives (software version 21010 or 21016).
