VS606V7 is a high-precision, high-torque inverter launched by Yaskawa Electric. This instruction manual introduces the use of this inverter, maintenance and maintenance, fault diagnosis and treatment, and product specifications.

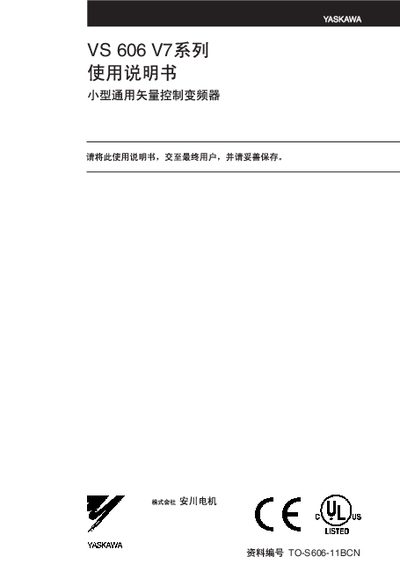

This manual describes the VS 606 V7 series small‑size general‑purpose vector control inverter. It explains the product’s features, safety requirements, and the procedures needed to install, wire, and operate the inverter safely and reliably.
Key sections cover safety precautions, IEC standard compliance, product inspection, wiring instructions, trial‑run operation, parameter settings, and contact information for YASKAWA service centers. Technical specifications such as inverter capacity, motor rated capacity, and electrical limits are listed in the final pages. This manual is written in Chinese.
| Maximum input voltage (4007 class) | 480 Vrms |
|---|---|
| Motor rated slip (Hz) | 2.5 – 2.9 Hz |
| Motor leakage inductance (mH) | 110.4, 56.08, 42.21 mH |
Power must be turned OFF, the power‑off state confirmed, and only qualified electrical engineers should perform the wiring. Wait until all indicator lights are off for at least one minute before starting work.
