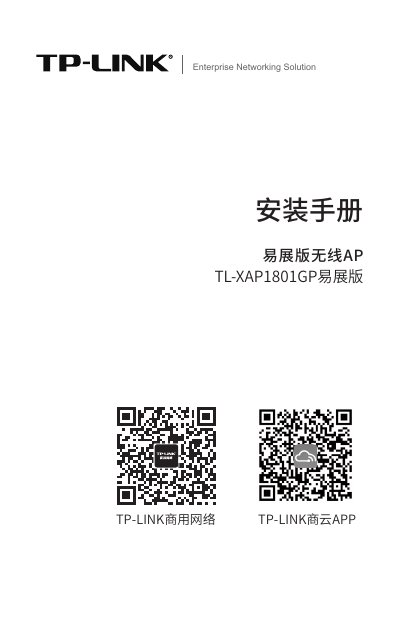

Installation guide for the TP-LINK TL-XAP1801GP outdoor wireless AP, covering hardware connection, power options, mounting and configuration.
The TL-XAP1801GP is a dual‑band outdoor wireless AP designed for wide‑area coverage such as parks, stadiums and campuses. It supports IEEE 802.3at PoE, 53.5 V Passive PoE and 12 V‑53.5 V DC power, can be equipped with a 5 dBi omnidirectional waterproof antenna, and offers two operating modes: FAT (stand‑alone) and FIT (controller‑managed).\n\nThe manual details hardware connection steps, including PoE, passive PoE and DC power wiring, wall‑mount or pole‑mount installation using the supplied brackets, and safety warnings. It also explains the network configuration options for FAT and FIT modes, indicator light meanings, and warranty information. This manual is written in Chinese.
| PoE standard | IEEE 802.3at |
|---|---|
| Passive PoE voltage | 53.5 V |
| DC input voltage range | 12 V‑53.5 V |
| Mounting options | Pole or wall mount |
| Operating modes | FAT (stand‑alone) and FIT (controller‑managed) |
| Operating modes | FAT (stand‑alone) and FIT (controller‑managed) |
It supports IEEE 802.3at PoE, 53.5 V Passive PoE, and a DC input of 12 V‑53.5 V.
The device can be installed on a wall or on a pole using the supplied brackets and hardware.
It can run in FAT mode as a standalone AP or in FIT mode managed by a TP‑LINK controller.
