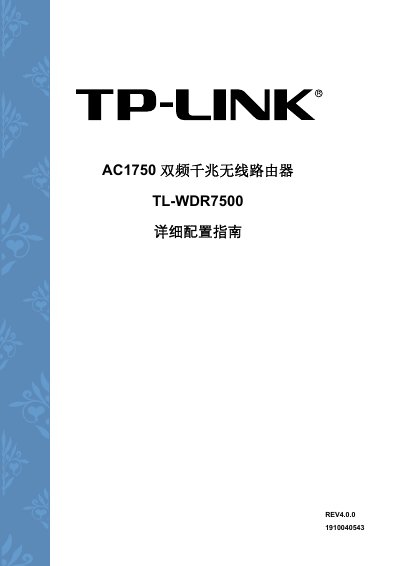

The TP-Link TL-WDR7500 user manual provides setup, configuration, hardware details, and specifications for the AC1750 dual‑band gigabit router.
This manual explains how to install, configure, and maintain the TP-Link TL‑WDR7500 AC1750 dual‑band gigabit router. It covers hardware layout, connection methods, and the full range of networking features such as WAN/LAN settings, wireless bands, security options, and parental controls.
Key sections include a quick‑install guide, detailed configuration steps for wireless and wired networks, system tools for firmware upgrades and factory reset, and an appendix with FAQs, browser settings, MAC address lookup, and a full specifications table. This manual is written in Chinese.
| WAN ports | 1 x 10/100/1000Mbps RJ45 |
|---|---|
| LAN ports | 4 x 10/100/1000Mbps RJ45 |
| USB ports | 2 x USB 2.0 |
| Wireless frequency range | 2.4‑2.4835 GHz and 5.725‑5.825 GHz |
| Maximum transmission power | 20 dBm (max) |
Open the Network and Sharing Center, view the connection status, click “Details”, and the “Physical Address” shown is the computer’s MAC address.
Use the System Tools menu and select “Restore Factory Settings” to reset the router to its original configuration.
