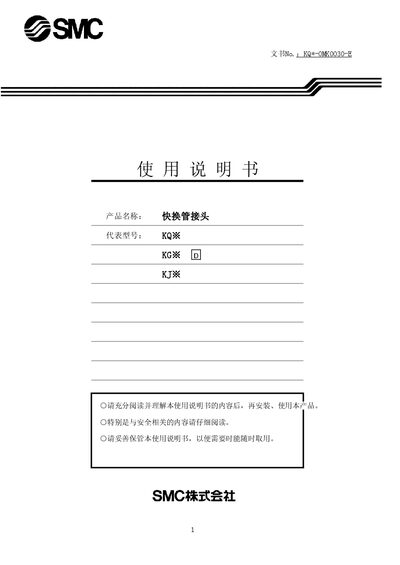

This manual provides safety instructions, specifications, installation steps, and maintenance information for SMC's KQ, KG, KJ, and D quick‑change pipe…
The manual begins with safety precautions that must be read and understood before installing or using the quick‑change pipe fittings. It outlines the applicable standards, required protective measures, and the responsibilities of the system designer and installer.
Subsequent sections detail the product specifications, recommended installation procedures, hose preparation, torque values for thread tightening, and routine maintenance. Parts lists, construction drawings, and contact information for SMC are also included. This manual is written in Japanese.
| Hose outer diameter options | φ3.2, φ4, φ6, φ8, φ10, φ12, φ16, φ1/8", φ5/32", φ3/16", φ1/4", φ5/16", φ3/8", φ1/2" |
|---|---|
| Maximum allowable pressure | 3 MPa |
| Operating temperature range | -5 °C to 60 °C (water 0 °C to 40 °C) |
| M3 thread tightening torque | 0.4–0.5 N·m |
| M5/M6/10‑32UNF thread tightening torque | 1–1.5 N·m |
The fitting is intended for compressed air; other fluids may be used only after confirming with SMC.
The recommended torque for M3 threads is 0.4 to 0.5 N·m.
Clean the hose thoroughly, cut it with a proper hose cutter, and avoid using pliers or scissors that could deform the hose end.
Regular inspections should be carried out according to the manual, checking for damage, leaks, and wear, and replacing parts as needed.
