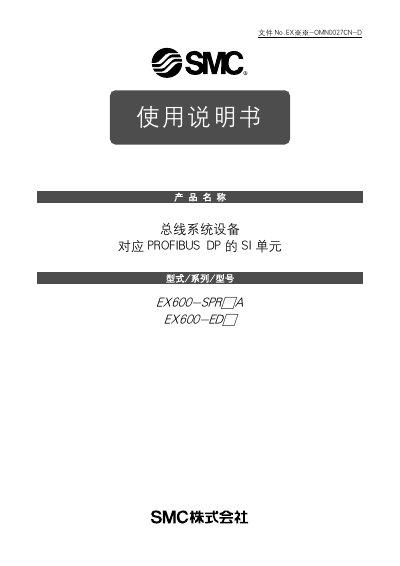

The SMC EX600 SI Unit User Manual provides safety instructions, system overview, installation, wiring, configuration, maintenance and troubleshooting for…
This manual covers the EX600 series SI units that connect to PROFIBUS DP bus systems. It includes safety precautions, system description, terminology, assembly, installation, wiring methods, configuration, LED display information, specifications, dimensions, maintenance procedures, fault tables, parameter settings, hardware configuration, GSD files and PLC connection guidelines.
Key sections include safety warnings, installation and setup steps, wiring diagrams, setting of terminator switches, diagnostic information, and a list of accessories and part numbers. The document is intended for experienced personnel who assemble, operate, maintain or service the units. This manual is written in Chinese.
| Communication protocol | PROFIBUS DP (DP‑V0) |
|---|---|
| Communication speed | 9.6/19.2/45.45/93.75/187.5/500 kbps, 1.5/3/6/12 Mbps |
| Power supply (control/input) | DC24 V Class 2, 2 A |
| Internal consumption current | ≤ 80 mA |
| Maximum I/O points | 512 input / 512 output |
| Output points per module | 32 (configurable to 8/16/24/32) |
| Protection rating | IP67 (when combined with valve module) |
| Operating temperature range | -10 °C to 50 °C |
| Weight | 300 g |
When the unit is connected to the end of a PROFIBUS DP communication line, the terminator switch must be set to ON.
The EX600 can handle up to 512 input points and 512 output points.
The unit requires a DC24 V Class 2 power supply capable of delivering 2 A for control and input functions.
