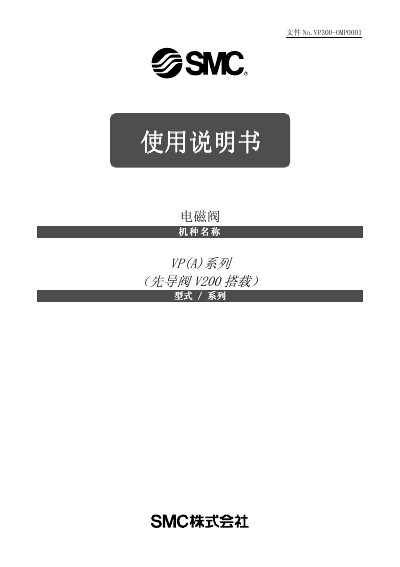

This manual provides safety, installation, wiring, piping, oiling, operating environment, maintenance, and troubleshooting instructions for the SMC…
The SMC VP300-OMP0001 solenoid valve manual covers all aspects needed to safely install, operate, and maintain the valve in pneumatic systems. It includes safety precautions, design considerations, selection guidelines, installation steps, piping and wiring instructions, oiling procedures, air‑source requirements, environmental limits, routine maintenance, and fault handling.
Key sections include detailed safety classifications, recommended torque values for mounting, IP65 protection rating, minimum operating temperature, leakage current limits, and recommended filter precision for the compressed air supply. The document also provides troubleshooting tables and part‑number references for service personnel. This manual is written in Chinese.
| Minimum Operating Temperature | -10 °C |
|---|---|
| IP Rating | IP65 |
| Maximum Residual Voltage (DC Coil) | ≤3 % of rated voltage |
| Maximum Residual Voltage (AC Coil) | ≤8 % of rated voltage |
| Recommended Torque for M3 Thread | 0.4–0.5 N·m |
| Recommended Torque for M5 Thread | 1–1.5 N·m |
The recommended torque is between 0.4 and 0.5 N·m.
The valve can operate down to –10 °C.
The valve is rated IP65, providing dust and water protection.
Residual voltage must not exceed 3 % of the rated voltage for DC coils.
