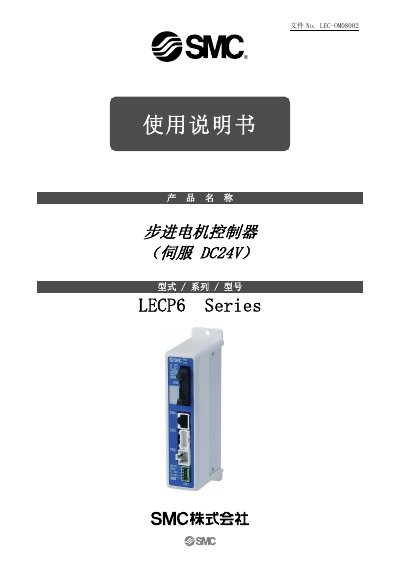

The SMC LECP6 Series stepper motor controller user manual provides safety instructions, installation steps, wiring diagrams, configuration and operation…
The LECP6 Series is a stepper motor (servo DC24V) controller designed for industrial automation and robot applications. It supplies separate power for the motor and controller, supports RS485 Modbus communication, and offers parallel I/O for flexible integration.
The manual covers safety precautions, product overview, detailed specifications, external connection diagrams, wiring instructions, data‑setting procedures, operation modes (positioning, push‑pull, hold), and troubleshooting with fault tables and alarm handling. This manual is written in Chinese.
| Motor type | 步进电机(伺服 DC24V) |
|---|---|
| Power supply voltage | DC24V±10％ |
| Maximum current | 额定 3A (峰值 5A) |
| Parallel input points | 11 (optocoupled isolation) |
| Parallel output points | 13 (optocoupled isolation) |
| Encoder | Incremental A/B, 800 pulses/rev |
| Serial communication | RS485 (Modbus protocol) |
| Memory | EEPROM |
| LED display | Green/Red LEDs (1 each) |
| Weight (threaded mount) | 150 g |
The controller provides 11 optocoupled isolated input points.
The controller requires a DC24V supply with a tolerance of ±10 %.
The rated current is 3 A, with a peak of 5 A.
There are 13 optocoupled isolated output points.
