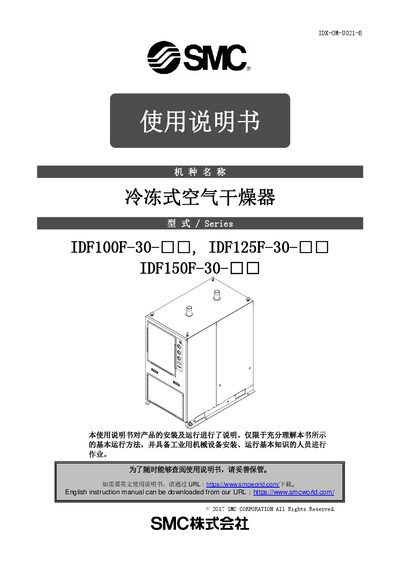

The SMC refrigerated air dryer user manual provides safety guidelines, installation, operation, maintenance, and specifications for models IDF100F-30…
This manual explains the safety precautions and required knowledge for operating the SMC refrigerated air dryer. It covers warnings, hazard classifications, and proper handling of refrigerant and high‑pressure components.
The document details transportation, installation, wiring, operation/start‑stop procedures, regular inspection, troubleshooting, and provides a full specification table and parts list for the IDF100F‑30, IDF125F‑30 and IDF150F‑30 models. This manual is written in Japanese.
| Voltage | 电源电压（频率） |
|---|---|
| Running Current | 运行电流 |
| Refrigerant | 冷媒种类（封入量） |
| Weight | 重量 |
| Maximum Pressure | 最高使用压力 |
| Serial Number | 序列号 |
| Made In | 生产国 |
The English instruction manual can be downloaded from the SMC website at https://www.smcworld.com/.
Before maintenance, cut power, ensure the device is at room temperature, and confirm that air pressure is reduced to zero.
Use a power cable of at least 3.5 mm² (12 AWG) with four conductors including ground.
