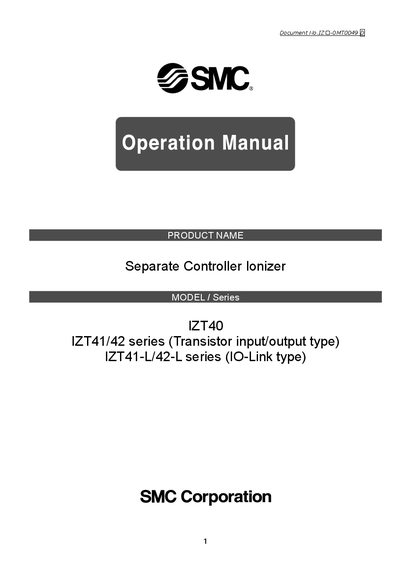

User manual for SMC IZT40, IZT41/42 Separate Controller Ionizer covering safety, installation, operation, specifications and maintenance.
This manual provides safety instructions, ordering information, and detailed procedures for operating the SMC Separate Controller Ionizer (IZT40, IZT41/42 series). It includes installation and wiring guidelines, functional descriptions, performance data, dimensions, and troubleshooting steps.
The document also outlines warranty terms, compliance requirements, and maintenance practices, ensuring safe and reliable use in manufacturing environments. Technical specifications such as tightening torque values and minimum cable bend radii are listed for proper assembly. This manual is written in Japanese.
| Controller screw tightening torque | 0.25 to 0.35 Nm |
|---|---|
| High voltage power supply module screw tightening torque | 0.25 to 0.35 Nm |
| Minimum bending radius – power supply cable (IZT40/41/42) | 40 mm |
| Minimum bending radius – high voltage cable | 30 mm |
| Warranty period | 1 year in service or 1.5 years after delivery, whichever is first |
The warranty is 1 year in service or 1.5 years after delivery, whichever comes first.
The minimum bending radius for the power supply cable (IZT40/41/42) is 40 mm.
No, the product is not designed to be explosion‑proof and must not be used in explosive dust, gas or vapor environments.
The controller mounting screws should be tightened to 0.25–0.35 Nm.
This manual explains 9 error codes. Open a code for its meaning, causes and what to do:
