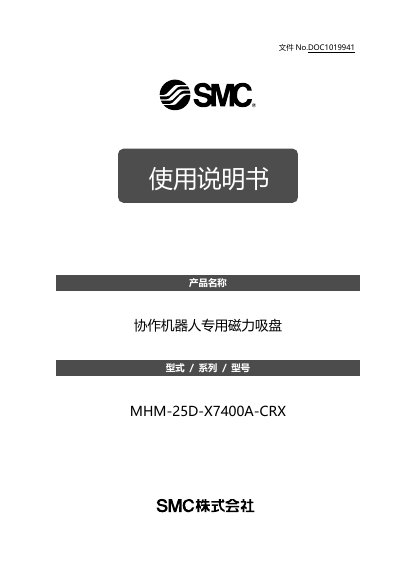

The SMC MHM-25D-X7400A-CRX user manual provides specifications, installation, operation, safety and maintenance guidelines for the collaborative robot…
This manual describes the SMC magnetic suction cup designed for collaborative robots, including its safety classifications, applicable standards, and detailed product specifications such as operating pressure, temperature range, weight, and magnetic holding force. It also outlines the required air source, connector types, and the dimensions of the unit.
The document provides step‑by‑step installation instructions, wiring diagrams, and usage procedures, followed by maintenance checklists, part replacement guidance, and safety precautions to ensure reliable and safe operation in industrial environments. This manual is written in Japanese.
| Operating pressure | 0.2–0.6 MPa |
|---|---|
| Maximum pressure rating | 0.9 MPa |
| Operating temperature | -10 °C to 50 °C |
| Weight | 590 g |
| Connector type | M8 8‑pin connector |
| Holding force (2 mm workpiece) | 160 N |
| Holding force (6 mm workpiece) | 200 N |
The suction cup operates with a pressure of 0.2 to 0.6 MPa.
It is rated to tolerate up to 0.9 MPa of pressure.
The suction cup is a non‑lubricated type; it comes with initial lubrication and can be used without additional oil.
