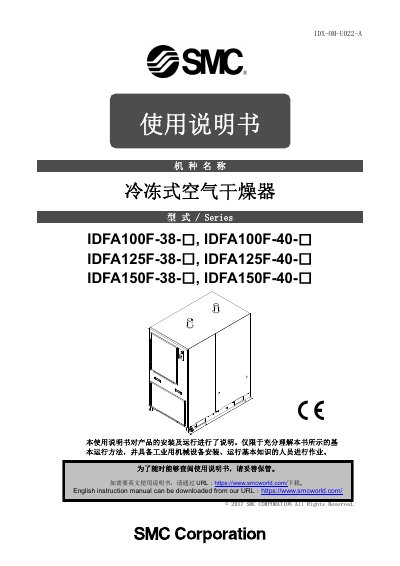

The SMC frozen‑type air dryer user manual provides safety guidelines, installation, operation, maintenance, and specifications for models IDFA100F‑38 to…
This manual covers all safety precautions required before using the SMC frozen‑type air dryer, including reading the manual, ensuring proper ventilation, securing inlet/outlet connectors, and waiting three minutes after a stop before restarting. It also details the required personal training and the need to follow ISO 4414, JIS B8370 and other safety standards.
Installation instructions describe transport, mounting, air‑pipe routing, drainage piping, and electrical wiring. Operational sections explain start‑up checks, normal running, stop procedures, and handling of abnormal conditions. Regular inspection, maintenance of consumable parts such as dust filters and automatic drain valves, and a parts list with replacement intervals are also provided. This manual is written in Japanese.
| Voltage | 38 V AC 380 V (50 Hz) / 40 V AC 400 V (50 Hz) |
|---|---|
| Running Current | Specified in the specification table |
| Refrigerant | Environmentally friendly HFC (type listed on spec label) |
| Maximum Pressure | Specified in the specification table |
| Weight | Specified in the specification table |
| Serial Number | Provided on the product label |
The IDFA100F‑38 model is designed for three‑phase 380 V (50 Hz) AC power.
The dryer uses an environmentally friendly HFC refrigerant, and its type and charge amount are indicated on the specification label.
