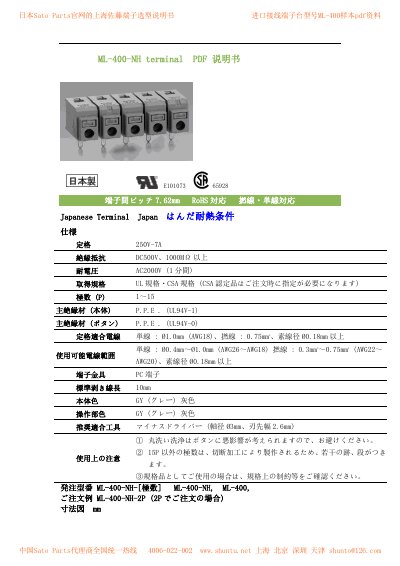

The Sato ML-400-NH terminal datasheet provides electrical ratings, dimensions, material specifications, and ordering information.
The ML-400-NH is a 7.62 mm pitch terminal made of P.P.E. (UL94V‑1) with a gray body and button made of P.P.E. (UL94V‑0). It is rated for 250 V‑7 A, offers insulation resistance of at least 1000 MΩ at 500 V DC, and can withstand 2000 V AC for one minute. The terminal supports 1 to 15 poles and accommodates single‑wire (Ø1.0 mm, AWG18) and stranded wire (0.75 mm²) sizes.
Ordering is done by specifying the pole count (e.g., ML-400-NH‑2P). Recommended installation tools include a minus screwdriver with a 3 mm shaft and 2.6 mm tip width. Users should avoid washing the button and note that terminals with more than 15 poles may show slight machining marks. This manual is written in Japanese.
| Pitch | 7.62 mm |
|---|---|
| Rated Voltage / Current | 250 V‑7 A |
| Insulation Resistance | ≥1000 MΩ at 500 V DC |
| Withstand Voltage | 2000 V AC (1 min) |
| Number of Poles | 1–15 |
| Main Insulation Material | P.P.E. (UL94V‑1) |
| Button Insulation Material | P.P.E. (UL94V‑0) |
| Single‑wire Size | Ø1.0 mm (AWG18) |
| Stranded Wire Size | 0.75 mm² |
| Recommended Tool | Minus screwdriver Ø3 mm shaft, 2.6 mm tip |
The terminal has a 7.62 mm pitch.
A minus screwdriver with a 3 mm shaft and a 2.6 mm tip is recommended.
It is rated for 250 V‑7 A, has an insulation resistance of at least 1000 MΩ at 500 V DC, and can withstand 2000 V AC for one minute.
