The SATO M84Rve is a barcode label printer that supports both thermal transfer and direct thermal printing. It offers a maximum print width of 4.1 inches, a resolution of 203 dpi, and speeds from 2 to 10 inches per second, making it suitable for high‑speed industrial labeling.

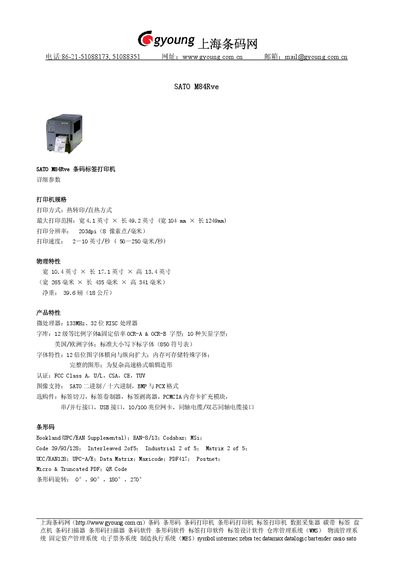

The device includes a 133 MHz 32‑bit RISC processor, multiple font sets, and support for a wide range of barcode symbologies. It operates in temperatures from –41 °F to 104 °F (5 °C to 40 °C) with up to 90 % humidity, and provides parallel, serial, RS‑422/485, Ethernet, and USB 1.1 interfaces for flexible connectivity. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Maximum print width | 4.1 inches (104 mm) |
| Print resolution | 203 dpi |
| Net weight | 39.6 lb (18 kg) |
| Processor | 133 MHz 32‑bit RISC |
| Maximum relative humidity | 90 % |
| Label width range | 0.87 in – 5.1 in (22 mm – 131 mm) |
| Ribbon width | 111 mm |
It supports both thermal transfer and direct thermal printing.
