The SATO GT series printers redefine the standard of industrial barcode printers with innovative features such as printing speed, graphical operation control, stability, 24-hour continuous operation capability, convenient maintenance, and competitive pricing. They are the first printers to adopt a true 32-bit RISC processor with 20MB memory and a maximum printing speed of 12 inches per second. The GT series printers also introduce the industry's first graphical menu control system with a large LCD panel for comfortable operation. They are designed to withstand harsh production environments, including dust, static electricity, and vibration, and are suitable for various industries including distribution, automotive, electronics, chemical, postal, apparel, manufacturing, and logistics.
The SATO GT series industrial label barcode printers are designed for harsh production environments, offering high printing speed, graphic menu control, and 24‑hour continuous operation. They are suitable for distribution, automotive, electronics, chemical, postal, apparel, manufacturing, and logistics applications.

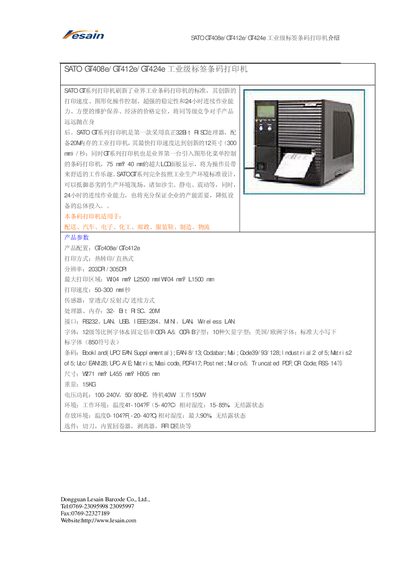

The manual lists key technical data such as printing methods, resolution, maximum print area, speed, sensors, processor, memory, interfaces, dimensions, weight, power consumption, and operating environment, helping users set up and maintain the printers efficiently. This manual is written in Chinese.
| Printing Method | 热转印 / 直热式 |
|---|---|
| Resolution | 203DCR / 305CRI |
| Maximum Print Area | W04 rmg L2500 nm |
| Print Speed | 50-300 nmid/秒 |
| Sensors | 穿透式 / 反射式 / 连续方式 |
| Processor and Memory | 32‑Bt SC processor, 20M memory |
| Interfaces | FS232, LAN, USB, Wireless LAN |
| Dimensions | 71 mm × 1455 mm × 305 mm |
| Weight | 15 kg |
| Power Consumption | Standby 40 W, Working 150 W |
| Operating Environment | Temperature 41‑104 °F (5‑40 °C), Humidity 15‑85 % RH |
It supports thermal transfer and direct thermal printing.
The standby power consumption is 40 W and the working power consumption is 150 W.
The printers provide RS232 (FS232), LAN, USB, and wireless LAN interfaces.
The printers can print at speeds ranging from 50 to 300 mm/s.
