SATO M10e Label Printer is a thermal transfer/direct thermal label printer with a maximum printing range of 266 mm × 420 mm, a print resolution of 305 dpi (12 pixels/mm), and a printing speed of 3-5 inches/second (75-125 mm/second).
The SATO M10e is a barcode label printer that supports both thermal transfer and direct‑thermal printing. It offers a maximum print area of 266 mm × 420 mm, a resolution of 305 dpi (12 pixels/mm) and a speed of 3‑5 inches per second (75‑125 mm/s). The unit measures 475 mm × 313.4 mm × 319.2 mm and weighs 23 kg, powered by a 133 MHz 32‑bit RISC processor and equipped with extensive font and graphic capabilities.

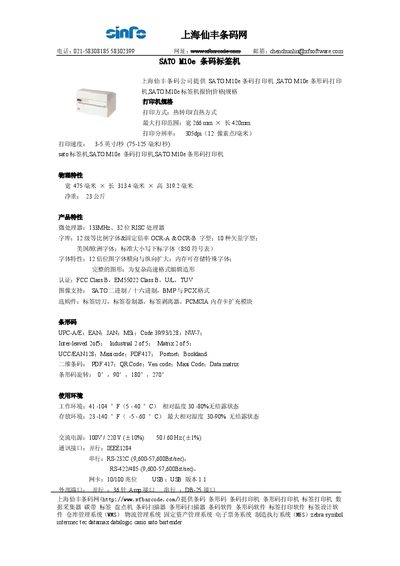

The printer operates in temperatures from 5 °C to 40 °C (41 °F‑104 °F) with up to 80 % relative humidity, and can be stored from –5 °C to 60 °C (23 °F‑140 °F). Power options are 100 V/220 V AC, and communication interfaces include parallel, RS‑232C, RS‑422/485 and USB 1.1. Optional accessories such as label cutters, roll dispensers, peelers and PCMCIA memory cards are available. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Maximum print area | 266 mm × 420 mm |
| Print resolution | 305 dpi (12 pixels/mm) |
| Print speed | 3‑5 inches/s (75‑125 mm/s) |
| Dimensions (W × L × H) | 475 mm × 313.4 mm × 319.2 mm |
| Processor | 133 MHz, 32‑bit RISC |
| Supported fonts | 12 proportional fonts, OCR‑A/B, 10 vector fonts |
| Certifications | FCC Class B, EM55022 Class B, UHL, TUV |
| Supported 1D barcodes | UPC‑A, EAN, JAN, Code 39/93/128, NW‑7, Inter‑leaved 2‑of‑5, Industrial 2‑of‑5, Matrix 2‑of‑S, UCC/EAN‑128, Maxicode, PDF417, Postnet, Bookland |
| Supported 2D barcodes | PDF 417, QR Code, VeriCode, MaxiCode, Data Matrix |
| Operating temperature | 5 °C – 40 °C (41 °F – 104 °F) |
| Storage temperature | -5 °C – 60 °C (23 °F – 140 °F) |
| Power supply | 100 V / 220 V AC, 50‑60 Hz |
| Communication interfaces | Parallel, RS‑232C (9.6‑57.6 kbps), RS‑422/485 (9.6‑57.6 kbps), USB 1.1 |
| Optional accessories | Label cutter, roll dispenser, label peeler, PCMCIA memory card module |
It supports both thermal transfer and direct‑thermal printing.
The maximum printable area is 266 mm wide by 420 mm long.
The printer provides parallel, RS‑232C, RS‑422/485 and USB 1.1 interfaces.
It operates from 5 °C to 40 °C (41 °F‑104 °F) with up to 80 % relative humidity, non‑condensing.
