SATO CT400/410 industrial label printer supports a variety of bar codes and prints at high speed. Optional interfaces are available.

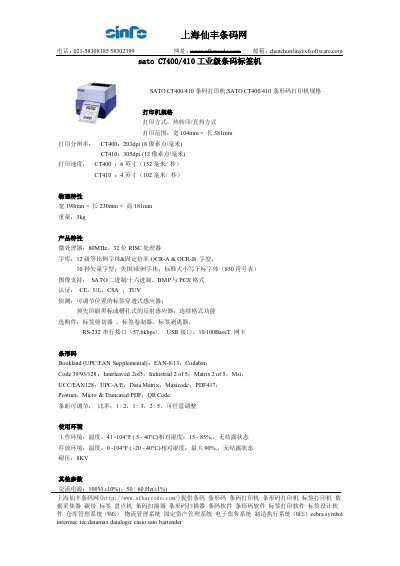

This manual describes the SATO CT400/410 industrial barcode label machine, covering its printing methods, specifications, and optional accessories. It provides the technical data needed for installation, operation, and maintenance in industrial environments.
Key sections include printing capabilities, physical dimensions, supported barcode symbologies, communication interfaces, power requirements, and environmental limits. The document also lists optional add‑on parts such as label cutters and peelers. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Print area | Width 104 mm × Length 381 mm |
| Resolution (CT400) | 203 dpi (8 pixels/mm) |
| Resolution (CT410) | 305 dpi (12 pixels/mm) |
| Print speed (CT400) | 6 inches / s (152 mm/s) |
| Print speed (CT410) | 4 inches / s (102 mm/s) |
| Physical dimensions | Width 198 mm × Length 230 mm × Height 181 mm |
| Processor | 80 MHz 32‑bit RISC processor |
| Communication interfaces | RS‑232, USB, 10/100Base‑T Ethernet |
| Power input | 100 V ± 10 % AC, 50/60 Hz |
| Operating temperature | 5 °C – 40 °C (41 – 104 °F) |
| Operating humidity | 15 % – 85 % RH |
It supports both thermal transfer and direct thermal printing.
The printable area is 104 mm wide by 381 mm long.
It operates from 5 °C to 40 °C (41 °F to 104 °F) with 15 % to 85 % relative humidity.
The printer provides RS‑232, USB, and 10/100Base‑T Ethernet interfaces.
