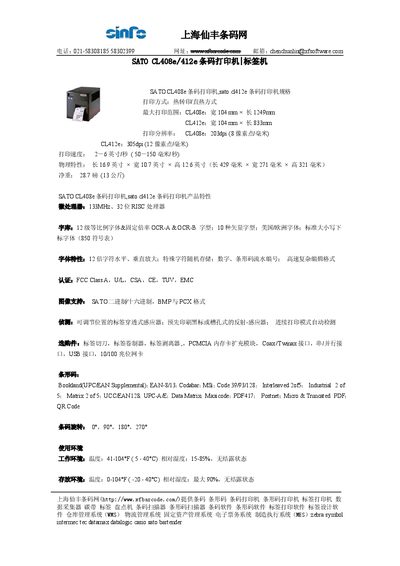

This document introduces the barcode-related products provided by Shanghai Xianfeng Barcode Website, including barcode printers, label printers, data collectors, etc. The features and characteristics include printing methods, printing range, printing resolution, printing speed, etc.
The SATO CL408e and CL412e are industrial barcode printers that support both thermal transfer and direct‑thermal printing. They offer a maximum print width of 104 mm, with lengths of 1249 mm for the CL408e and 833 mm for the CL412e, and resolutions of 203 dpi (CL408e) and 305 dpi (CL412e). The printers are built around a 133 MHz, 32‑bit RISC processor and include a variety of built‑in fonts and barcode symbologies.
The devices operate in temperatures from 5 °C to 40 °C, with humidity up to 85 % (non‑condensing). Power consumption is 50 W standby and 130 W active. Connectivity options include IEEE1284 parallel, RS‑232C, RS‑422/485, USB, and TCP/IP Ethernet. Optional accessories such as label cutters, roll dispensers, and PCMCIA memory cards are supported. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Maximum print width | 104 mm |
| Maximum print length (CL408e) | 1249 mm |
| Maximum print length (CL412e) | 833 mm |
| Print resolution (CL408e) | 203 dpi (8 dots/mm) |
| Print resolution (CL412e) | 305 dpi (12 dots/mm) |
| Print speed | 2–6 inches/sec (50–150 mm/sec) |
| Processor | 133 MHz, 32‑bit RISC |
| Power consumption (standby) | 50 W |
| Power consumption (working) | 130 W |
The CL408e prints at 203 dpi (8 dots per millimetre).
Operate between 5 °C and 40 °C (41‑104 °F) with 15‑85 % relative humidity and no condensation.
