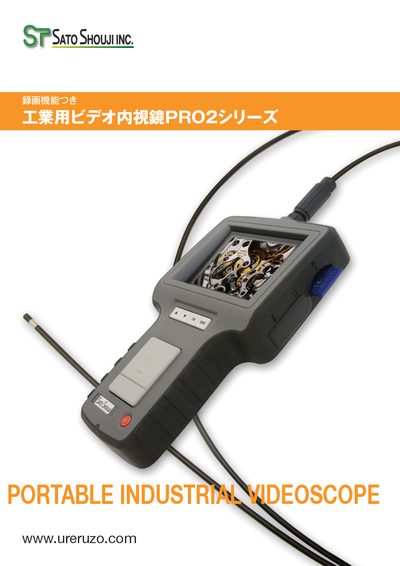

This document introduces the PRO2 series of portable industrial videoscopes with recording capabilities, including their screen, waterproof performance, functions, and design.
The PRO2 series is a high‑performance video endoscope designed for industrial inspection. It features a 3.5‑inch VGA (640×480) LCD, four high‑brightness white LEDs, and a CMOS camera that can operate underwater to a depth of 1 m for up to 80 minutes. The unit is IPX7 waterproof and IP5X dust‑proof, with a lightweight plastic body covered in rubber for easy handling.
The manual covers the device’s functions, cable options (semi‑flexible, interlock, and 2‑way movable cables), SD‑card recording, USB and composite video output, battery charging, and safety notes. It also lists model numbers, specifications, and accessories such as straps, hooks, and cleaning kits. This manual is written in Japanese.
| Display | 3.5‑inch VGA (640×480) LCD |
|---|---|
| LED | 4 high‑brightness white LEDs (adjustable brightness) |
| Camera Sensor | CMOS sensor, approx. 300,000 pixels |
| Battery | Rechargeable Li‑ion battery, ~4 h runtime after 2 h charge |
| Waterproof / Dustproof Rating | IPX7 waterproof, IP5X dust‑proof (camera only) |
| Cable Length Options | 1 m to 10 m selectable |
| Video Output | Composite video (NTSC) and Mini‑USB |
The camera body meets IPX7 waterproof and IP5X dust‑proof standards, but the cable and accessories are not waterproof.
The rechargeable Li‑ion battery provides about 4 hours of operation after a 2‑hour charge.
It features a 3.5‑inch VGA LCD with a resolution of 640 × 480 pixels.
