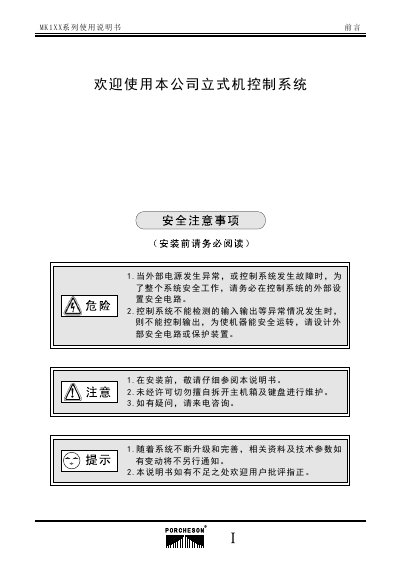

The PORCHESON MK1XX series control system user manual provides installation, configuration, operation, troubleshooting, and maintenance instructions for the…
This manual covers the complete setup and use of the PORCHESON MK1XX series control system for vertical injection molding machines. It includes safety notices, system configuration, wiring, and initial power‑on checks before the controller can be operated.
Key sections describe key‑pad functions, parameter and function settings, system debugging, input/output status monitoring, production management, and detailed appendices with wiring diagrams, sensor specifications, and part selection tables. This manual is written in Chinese.
| CPU | Dual 32‑bit CPU |
|---|---|
| D/A Output | 3‑channel standard D/A, max 3 A |
| PWM Output | 2 PWM channels |
| Ethernet Support | Built‑in Ethernet interface |
| I/O Isolation | Optocoupler circuits for input/output isolation |
| Power Supply | 200 W optional power module |
After wiring, check all voltages against their nominal values, confirm the power‑on indicator lights, then power on the controller and verify that the LCD shows the home screen and the RUN light flashes.
For same‑city requests the service arrives within 24 hours, within the same province within 48 hours, and outside the province no later than 72 hours.
Yes, the system supports Ethernet and can be monitored over a LAN or via the Internet for factory automation.
