This user manual is about the use of TD118 injection molding machine. The main content includes the attentions before using the system, the warranty service scope and content, and the products in normal use only because of the product's own quality reasons. If the failure occurs, you can enjoy free repair and replacement service during the warranty period.
This manual covers the complete setup and safe operation of the Porcheson TD118 control system used in injection molding equipment. It includes safety notices, system configuration, installation procedures, and detailed explanations of the control panel functions.
The document also describes parameter configuration, data management, weekly system checks, and input/output signal testing, helping users maintain reliable performance and troubleshoot common issues. This manual is written in Chinese.
| Display | 640×480 LCD, 7.5‑8.4 inch color |
|---|---|
| CPU | Dual 32‑bit processor |
| Analog Output Channels | 3 D/A channels, up to 4 current outputs |
| Temperature Control | 6+1 temperature control stages |

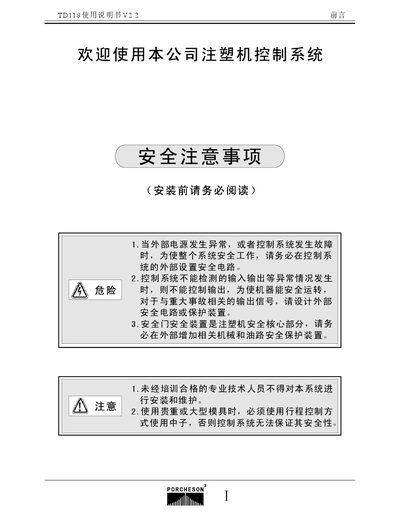

The manual states that external safety devices must be installed, the system must be grounded, and oil‑related safety devices must be added to ensure safe operation.
Yes, the manual describes real‑time display of pressure, speed, flow, and temperature curves on the LCD screen.
The controller provides multiple input and output channels, including 3 analog inputs, 3 analog outputs, and digital I/O for pressure, flow, and temperature monitoring.
