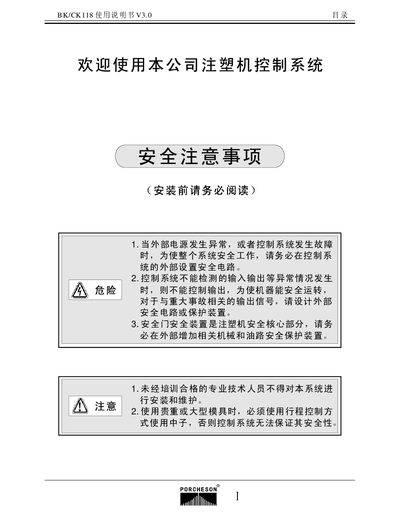

This document is the user manual for BK108 V1.0, which describes the product configuration, features, and installation steps.
This manual covers the configuration, installation, and operation of the Porcheson BK118 control system. It includes safety precautions, wiring diagrams, parameter settings, and production management procedures.
The document also details warranty terms, compatible modules, and troubleshooting information, helping users set up and maintain the system safely and efficiently. This manual is written in Chinese.
| Display size (monochrome) | 5.7" 320×240 |
|---|---|
| Display size (color) | 6.0" 640×480 |
| Power supply (PV800) | 300 W |
| CPU | 32‑bit dual‑core |
The product is covered by a three‑year warranty (including a three‑year LCD warranty) starting from the date of manufacture, with additional one‑year free repair under the “三包” policy.
