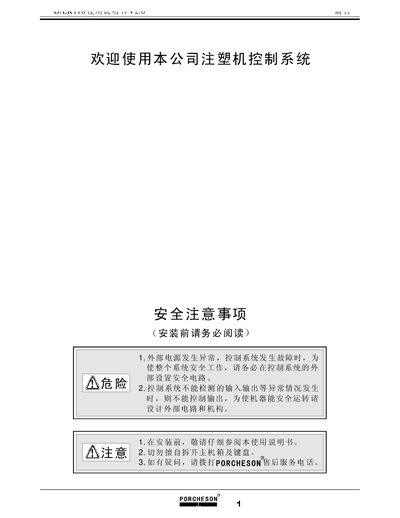

This document is the user manual V2.0 for PORCHESON TECHNOLOGY CO.,LTD injection molding machine control system D/EK118. The control system features a high-brightness LCD display, multi-CPU design, modular design, Real Time function, etc. It also has LED indicators for input and output, screen protection function, opto-isolated circuits, standard DA proportional output, and more. This control system is suitable for temperature control and production management of injection molding machines.
This manual covers the complete setup of the Porcheson EK118 control system, including mechanical installation, wiring, and safety precautions. Detailed chapters describe the control panel operation, function configuration, and production management features.
Additional sections provide fault diagnosis procedures, input/output testing, and auxiliary functions such as USB and CAN interfaces. The document also includes specifications, parameter tables, and maintenance guidelines to ensure reliable operation. This manual is written in Japanese.
| Display size (small) | 10.4 inches (800 × 600) |
|---|---|
| Display size (large) | 12.1 inches (1024 × 768) |
| Maximum DA output current | 3 A |
The controller offers a 10.4‑inch display with 800 × 600 resolution and a 12.1‑inch display with 1024 × 768 resolution.
The DA output can supply up to 3 A.
