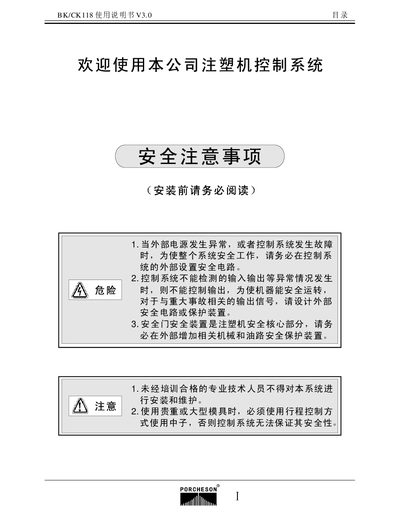

This manual introduces the use of BK/CK118 products, including safety precautions, installation and maintenance precautions, and warranty services.
This manual explains the safety precautions required for the BK118 controller, including the need for external safety devices and proper grounding. It also details the system configuration, installation procedures, and wiring requirements.
Further sections cover parameter and function settings, production management features, and system diagnostics. Appendices provide reference diagrams and part numbers for the controller and associated modules. This manual is written in Chinese.
| Monochrome LCD size | 5.7" 320×240 |
|---|---|
| Color LCD size | 6.0" 640×480 |
| Power supply for PV800 | 300 W |
| Power supply for Pve00 | 600 W |
| Control unit model PS630AM | 24/24+7 + 3‑channel sensor |
| Control unit model PS800AM | 31/28+10 + 3‑channel sensor |
| Control unit model PS820AM | 27/28+10 + 3‑channel sensor + 3‑channel pressure |
The product is covered by a three‑year warranty (三年免吉保修) starting from the date of shipment.
