This manual introduces the features of the TD11228F horizontal double color machine control system, including system configuration and installation, key operation instructions, parameter/function setting instructions, system debugging setting instructions, input/output status detection and other content.

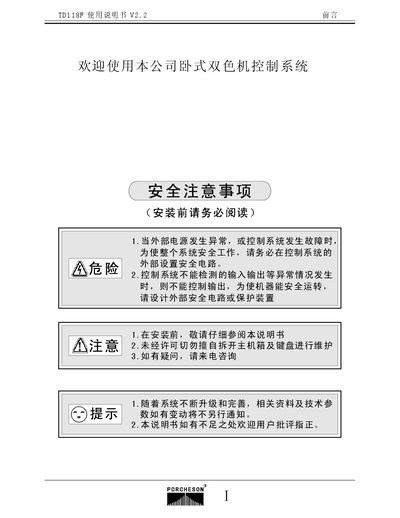

This manual describes the Porcheson TD118F two‑color injection‑molding machine control system. It begins with safety precautions and system overview, emphasizing the need for external safety circuits and proper grounding before power is applied.
The document then covers system installation, key operation, parameter setting, production management, debugging, and input/output status detection. Detailed wiring diagrams, component dimensions, and troubleshooting tips are provided in the appendix. This manual is written in Chinese.
| Display resolution | 640×480 |
|---|---|
| CPU architecture | Dual 32‑bit CPU |
| Maximum D/A output current | 34 A |
| Mold data storage capacity | 999 molds |
| I/O isolation | Optical‑coupler isolation |
After installation, perform a full inspection of the power supply, main chassis, heating output wiring, keyboard, thermocouple and all other connections to ensure they are securely attached.
When the system is operating normally, select the [Special Parameters] menu and adjust the color and contrast settings.
Yes, the system includes remote communication functionality that allows users to program the controller and update software from a distance.
