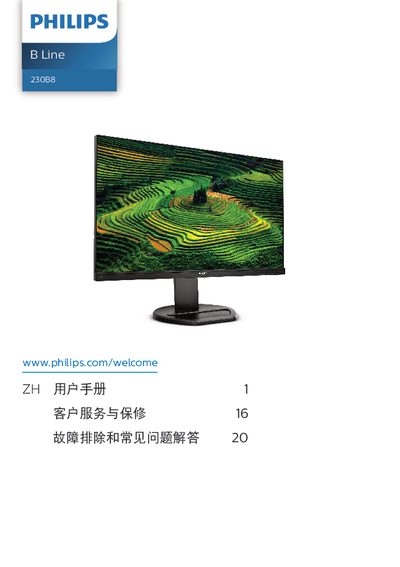

The Philips B Line 230B8 monitor user manual provides safety guidelines, setup steps, image‑optimization features, technical specifications…
This manual covers important safety measures, proper installation, and operation of the Philips B Line 230B8 LCD monitor. It explains how to mount the base, connect video and audio cables, adjust the on‑screen display (OSD) settings, and use SmartImage, SmartContrast and Adaptive Sync features.
The document also lists the monitor’s technical specifications, power consumption, environmental disposal information, warranty conditions, and a detailed troubleshooting & FAQ section that addresses common issues such as resolution errors, image retention, and cleaning procedures. This manual is written in Chinese.
| Panel type | IPS |
|---|---|
| Backlight | W‑LED |
| Screen size | 22.5" (57.2 cm) |
| Aspect ratio | 16:10 |
| Native resolution | 1920 × 1200 @ 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Color depth | 16.7 M (6 bit+FRC) |
| Refresh rate range | 48 Hz – 76 Hz |
| Video inputs | VGA, DVI, HDMI 1.4, DisplayPort 1.2 |
| Typical power consumption (normal mode) | 16.2 W |
| Standby power consumption | 0.3 W |
| Dimensions (with base) | 499 × 512 × 216 mm |
| Weight (with base) | 4.30 kg |
Wipe the screen with a dry soft cloth; for detailed cleaning use a slightly damp cloth with isopropyl alcohol, avoiding other solvents such as regular alcohol, acetone, or gasoline.
