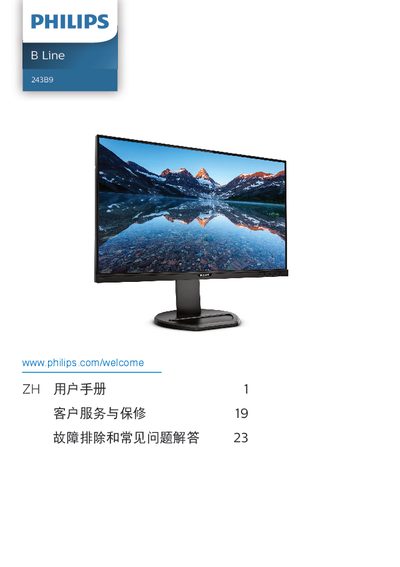

Chinese user manual for Philips 241B8 and 243B9 monitors covering setup, safety, image settings, and troubleshooting.
This manual provides safety guidelines, installation steps, and operation instructions for Philips 241B8 and 243B9 LCD monitors. It explains how to mount the base, connect video and USB cables, and adjust on‑screen display (OSD) settings such as SmartImage, SmartContrast, and Adaptive Sync.
The document also includes technical specifications, power‑management features, warranty information, and a detailed troubleshooting section that answers common questions about resolution, refresh rate, cleaning, and image retention. This manual is written in Chinese.
| Panel Type | IPS |
|---|---|
| Backlight | W‑LED |
| Screen Size | 23.8" (60.5 cm) |
| Resolution | 1920 × 1080 @ 60 Hz |
| Contrast Ratio | 1000:1 (typical) |
| Refresh Rate | 48 Hz – 75 Hz |
| Connectivity | VGA×1, HDMI 1.4×1, DisplayPort 1.2×1, USB‑C (PD up to 65 W) |
| USB‑C Power Delivery | Up to 65 W (5‑20 V, 3‑3.25 A) |
| Typical Power Consumption | 22.2 W |
The recommended resolution is 1920 × 1080 at 60 Hz.
The LCD monitor is recommended to run at 60 Hz, but can be set up to 75 Hz to reduce interference.
Use a dry soft cloth for normal cleaning; for deeper cleaning use isopropyl alcohol, avoiding solvents such as acetone or gasoline.
