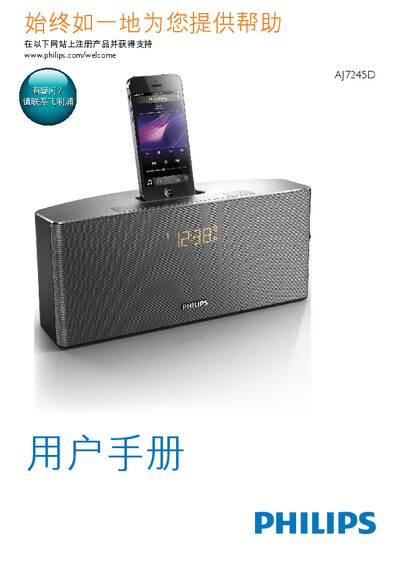

The Philips AJ7245D base station entertainment system user manual provides safety instructions, setup steps, operation guides, specifications, and…
This manual covers safety precautions, product overview, and the items included in the box. It explains how to install the battery, connect the power adapter, and set the time and date.
The guide then details playback functions—including iPod/iPhone playback, FM radio, external audio sources, volume control, alarm settings, and display brightness—followed by product specifications and troubleshooting tips. This manual is written in Chinese.
| Total output power | 20 W |
|---|---|
| Frequency response | 63 Hz – 16 kHz |
| Signal‑to‑noise ratio | > 50 dB |
| Total harmonic distortion | < 15 % |
| Aux input level | 0.6 V RMS, 10 kΩ |
| Speaker impedance | 4 Ω |
| FM tuning range | 87.5 – 108 MHz |
| Power adapter input | 100‑240 V, 50/60 Hz, 650 mA |
| Operating power consumption | < 20 W |
| Dimensions (W × H × D) | 283 × 135 × 112 mm |
| Weight | 1.4 kg |
The supplied adapter accepts 100‑240 V AC, 50/60 Hz, up to 650 mA, and provides a 10 V, 1.8 A output.
