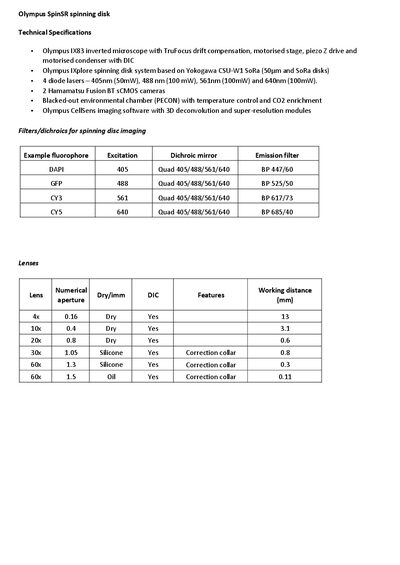

Technical specifications for the Olympus SpinSR spinning disk system, covering microscope, lasers, cameras, environmental chamber, software, filters and lenses.
The Olympus SpinSR spinning disk system integrates an IX83 inverted microscope with TruFocus drift compensation, motorised stage, piezo Z‑drive and motorised condenser with DIC. It incorporates a Yokogawa CSU‑W1 SoRa spinning‑disk unit and provides four diode lasers (405 nm, 488 nm, 561 nm, 640 nm) for multi‑color fluorescence imaging.
The system is equipped with two Hamamatsu Fusion BT sCMOS cameras, a blacked‑out PECON environmental chamber with temperature control and CO₂ enrichment, and Olympus CellSens imaging software featuring 3D deconvolution and super‑resolution modules. Detailed filter/dichroic sets and a range of lenses with specific numerical apertures and working distances support versatile imaging applications.
| Microscope | Olympus IX83 inverted microscope with TruFocus drift compensation, motorised stage, piezo Z‑drive and motorised condenser with DIC |
|---|---|
| Spinning Disk | Yokogawa CSU‑W1 SoRa (50 µm and SoRa disks) |
| Lasers | 405 nm (50 mW), 488 nm (100 mW), 561 nm (100 mW), 640 nm (100 mW) |
| Cameras | 2 Hamamatsu Fusion BT sCMOS cameras |
| Environmental Chamber | Blacked‑out PECON chamber with temperature control and CO₂ enrichment |
| Imaging Software | Olympus CellSens with 3D deconvolution and super‑resolution modules |
| Lens 60x Oil | NA 1.5, oil, working distance 0.11 mm |
The system includes four diode lasers: 405 nm (50 mW), 488 nm (100 mW), 561 nm (100 mW) and 640 nm (100 mW).
It uses two Hamamatsu Fusion BT sCMOS cameras.
A blacked‑out PECON chamber with temperature control and CO₂ enrichment is included.
Olympus CellSens imaging software with 3D deconvolution and super‑resolution modules is provided.
