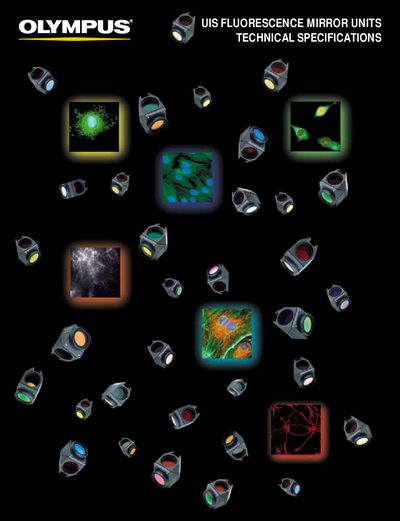

Olympus Fluorescence Mirror Units Technical Specifications

Technical specifications for Olympus fluorescence mirror units, including excitation/emission ranges, compatible fluorochromes and mirror unit data.

Brand: Olympus
Category: Other device
Document type: Product Leaflet
Language: English
Pages: 16
File format: PDF
File size: 439 KB
Published: 06 October, 2026
Updated: 06 October, 2026
MD5 checksum: 7DA96B81DF713AA27224B501E523B713
PDF: Olympus Fluorescence Mirror Units Technical Specifications PDF

About this manual

This document provides detailed technical data for Olympus fluorescence mirror units used in multi‑label microscopy. It lists excitation and emission wavelength ranges for each mirror unit model (e.g., U‑MWU2, U‑MWIB2) and matches them to compatible fluorochromes such as GFP, Alexa Fluor dyes and DNA stains.

The spec sheet also includes optical component size requirements, transmission ratios for barrier filters and dichromatic mirrors, and assembly instructions for the empty mirror unit (U‑MF2). Certification and environmental compliance information for Olympus Optical Co. Ltd. are provided at the end.

What's inside

Fluorochrome Selection Chart
Mirror Unit Wavelength Characteristics
Excitation Balancers
Empty Mirror Unit Assembly
Optical Component Size Requirements
Barrier Filter and Mirror Transmission Ratios
Technical Certifications

Specifications

U-MWU2 excitation/emission	330‑385 nm excitation, 420 nm emission
U-MWIB2 excitation/emission	460‑490 nm excitation, 510 nm emission
Emission filter size limit	max thickness 6 mm

Frequently asked questions

Which mirror units are compatible with GFP (WT)?

U‑MWIB2, U‑MWIBA2, MNIBA2 and U‑MGFPHQ can be used with GFP (WT).

What are the filter and mirror specifications for BP420‑480?

BP420‑480 uses barrier filter BA520IF and dichromatic mirror DM500.
