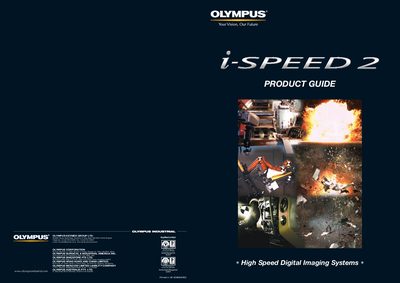

The Olympus i-Speed 2 product guide details specifications, accessories, software and applications for the high‑speed digital imaging system.
The Olympus i-Speed 2 is a portable high‑speed digital imaging system designed for industrial use. It records up to 33,000 fps with 800 × 600 resolution and offers both monochrome and colour camera options. The system includes a Camera Display Unit (CDU), Remote Control Pad, and optional accessories such as lenses, lighting and GPS/IRIG modules.
The guide provides technical specifications, a list of standard and optional accessories, software package descriptions (Basic, Advanced, Deluxe) and information on system integration, mounting, and environmental limits. It also outlines typical industrial applications ranging from aerospace testing to fast‑moving manufacturing processes.
| Maximum recording speed | 33,000 fps |
|---|---|
| Resolution | 800 × 600 |
| Input voltage | 12 V DC ±10% (110‑240 V AC) |
| Power consumption | 36 W |
| On‑board memory | 2 GB or 4 GB |
| Camera dimensions | 115 mm W × 110 mm H × 233 mm L |
| Camera weight | 2 kg |
| Ethernet interface | 10/100Base‑T auto‑switching |
The i‑Speed 2 can record up to 33,000 frames per second.
The camera is available with either 2 GB or 4 GB of internal memory.
