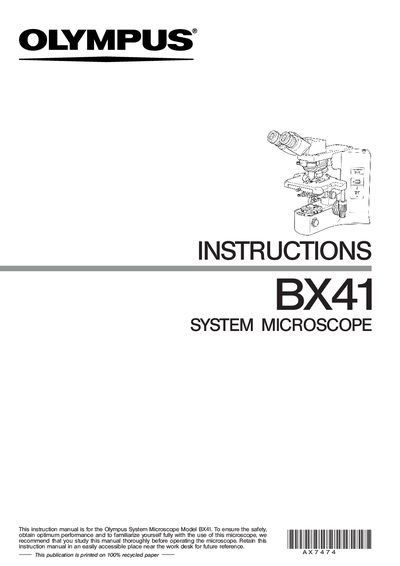

The Olympus BX41 System Microscope User Manual provides assembly, operation, safety, maintenance, and troubleshooting instructions.
The BX41 is a UIS2/UIS universal infinity system microscope designed for laboratory use. This manual guides users through proper assembly, safe operation, and routine maintenance to ensure optimal performance.
Key sections include safety precautions, detailed control descriptions, bright‑field observation procedures, specifications, troubleshooting, and recommended power‑supply selection. The document also covers cleaning, storage, and handling of accessories.
| Optical system | UIS2/UIS (Universal Infinity System) |
|---|---|
| Illumination bulb | 6V 30W halogen (PHILIPS 5761) |
| Power consumption | 45 W |
| Focusing stage stroke | 0.1 mm (fine), 17.8 mm (coarse) |
| Revolving nosepiece | 5‑position universal |
| Observation tube types | Widefield binocular, tilting binocular, trinocular, super widefield trinocular |
| Stage movement range | X: 76 mm, Y: 52 mm |
| Interpupillary distance adjustment | 50 mm to 76 mm |
The BX41 uses a 6 V 30 W halogen bulb (PHILIPS 5761) that is pre‑centered.
Leave at least 10 cm of free space on the left, right, and rear sides of the microscope and lamp socket.
The microscope is rated for 100‑120 V or 220‑240 V, 0.8/0.4 A, 50/60 Hz.
