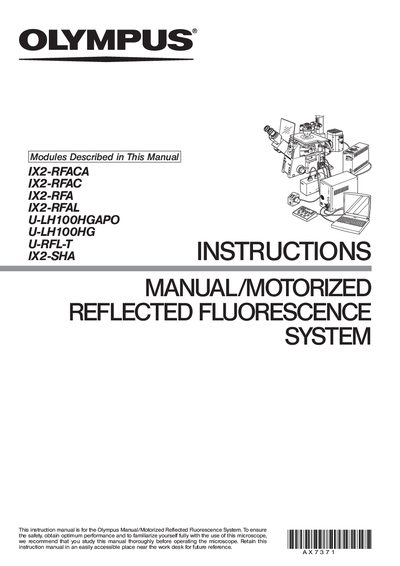

Instruction manual for Olympus IX2-RFACA reflected fluorescence microscope system, covering safety, assembly, operation, and maintenance.
This manual provides safety precautions, assembly instructions, control nomenclature, and operating procedures for the Olympus IX2-RFACA reflected fluorescence system. It details module descriptions, power‑supply requirements, and troubleshooting steps to ensure reliable performance.
The document also includes specifications of the optical and mechanical components, guidelines for lamp housing inspection, and recommended maintenance practices. Users are instructed on proper handling of motorized parts, filter selection, and environmental limits for optimal operation.
| Illuminator magnification | 1X (widefield compatible, FN 22) |
|---|---|
| Mirror unit switching speed | Approx. 1 sec. |
| Motorized shutter switching speed | 0.4 sec. |
| Supply voltage fluctuation tolerance | ±10% of normal voltage |
| Operating temperature range | 5° to 40°C (41° to 104°F) |
Use the Olympus‑provided USH‑103OL (OLYMPUS) or the OSRAM HBO103W/2 mercury burner.
Inspect the lamp housing each time the lamp bulb is replaced and at least every six months.
The standard service life is eight years or 20,000 hours of total power‑on time, whichever is shorter.
