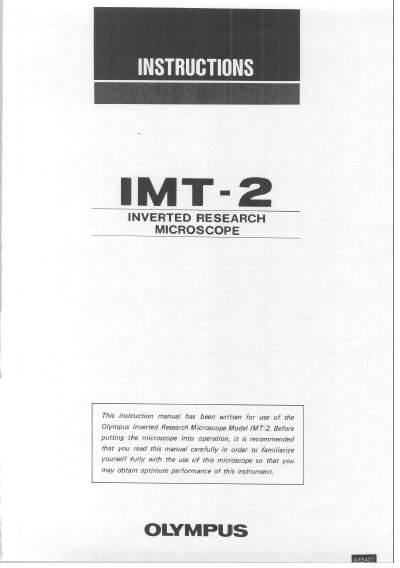

The Olympus IMT-2 inverted research microscope instruction manual provides assembly, operation, and maintenance guidelines.
This manual describes how to safely assemble, operate, and maintain the Olympus IMT-2 inverted research microscope. It includes handling precautions, recommended cleaning procedures, and instructions for using the illumination system, stage, and optical components.
The document also contains detailed specifications, standard configurations, a troubleshooting guide, and step‑by‑step assembly diagrams to help users achieve optimal performance and keep the instrument in good condition.
| Stage traversing area | 200 mm x 200 mm |
|---|---|
| Illumination light source | 12 V 50 W halogen bulb |
| Weight | 20.5 kg |
| Overall dimensions (W × D × H) | 320 mm × 395 mm × 600 mm |
| Eyepoint | 405 mm |
Lens surfaces must be kept clean; fine dust is removed with a hand blower and oil or fingerprints are wiped with gauze moistened with a small amount of xylene or a cleaning medium (alcohol and ether 3:7).
Only the Olympus‑specified 12 V 50 W halogen bulb (12V50WHAL) may be used.
After use, cover the microscope with the provided vinyl dust cover and store it in a location free from humidity.
