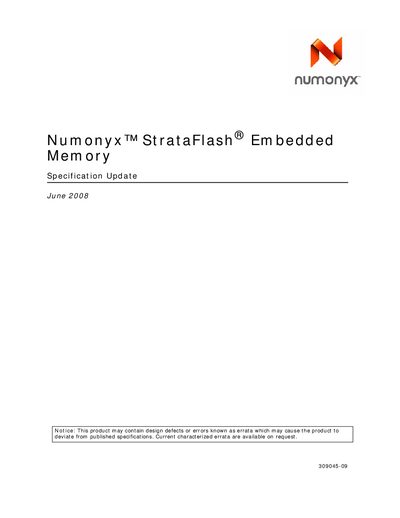

Numonyx StrataFlash P30 Embedded Memory Specification Update

About this manual

This document serves as a specification update for the Numonyx StrataFlash Embedded Memory (P30) family, released in June 2008. It consolidates known design defects (errata), modifications to published specifications, and clarifications regarding complex design situations. The update is intended for hardware system manufacturers and software developers to ensure proper device operation and design compliance.

What's inside

• Revision History
• Preface
• Summary Table of Changes
• Errata
• Specification Changes
• Specification Clarifications
• Documentation Changes

Specifications

Frequently asked questions

What is the workaround for the TSOP Synchronous Burst Read erratum?

The synchronous read input signals (ADV# and CLK) should be tied off to support asynchronous reads.

How should the Tres (W602) spec be adjusted for erase failures?

Increase the Tres spec from 500uS to 1mS, or continue increasing in increments of 500uS up to a maximum of 2.5mS.
