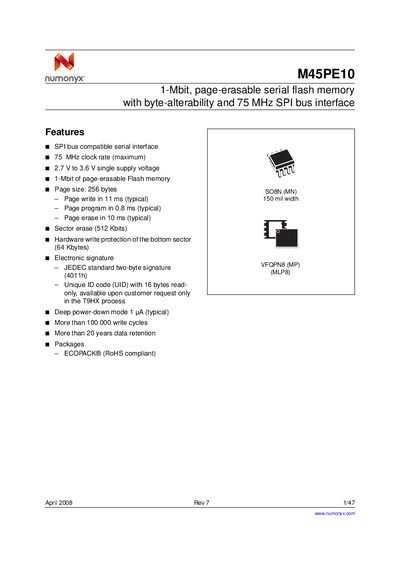

M45PE10 is a 1-megabit page-erasable serial flash memory with byte-alterability and a 75 MHz SPI bus interface.
The M45PE10 is a 1‑Mbit (128 Kbit × 8 bit) serial paged flash memory accessed via a high‑speed SPI‑compatible bus. It supports page‑wise write, program and erase operations, and is organized into two sectors of 256 pages each.
Key features include a maximum 75 MHz SPI clock, a supply range of 2.7 V‑3.6 V, deep‑power‑down mode, over 100 000 write cycles, and more than 20 years of data retention. The device is offered in an ECOPACK® RoHS‑compliant package.
| Memory capacity | 1 Mbit |
|---|---|
| Maximum SPI clock rate | 75 MHz |
| Supply voltage | 2.7 V to 3.6 V |
| Page size | 256 bytes |
| Page write time (typical) | 11 ms |
| Page program time (typical) | 0.8 ms |
| Page erase time (typical) | 10 ms |
| Sector erase size | 512 Kbits |
| Deep power‑down current (typical) | 1 µA |
| Write‑cycle endurance | >100 000 cycles |
| Data retention | >20 years |
| Package type | ECOPACK® (RoHS compliant) |
The device supports up to 75 MHz SPI clock rate.
It operates from 2.7 V to 3.6 V single supply.
The memory can handle more than 100 000 write cycles.
Each page is 256 bytes wide.
