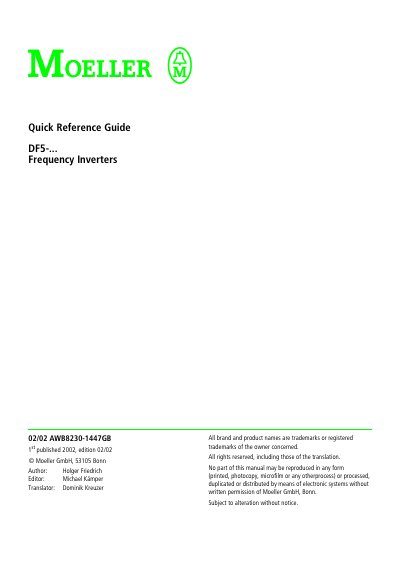

A quick reference guide for the Moeller DF5 frequency inverter covering keypad operation, fault messages, parameter settings, and initialization procedures.
This document serves as a quick reference guide for the Moeller DF5 frequency inverter. It details the functions of the LCD keypad elements, including indicators like RUN and POWER LEDs, and explains how to use the potentiometer and arrow keys to set frequencies and control modes.
The guide also provides essential information on troubleshooting by listing specific fault messages (E01-E35) such as overcurrent, overvoltage, and earth faults. Additionally, it outlines procedures for restoring default settings and includes a standard form for user-defined parameter configurations.
The output voltage is switched off and the connected motor coasts to a stop.
The output voltage is switched off 100 seconds after the voltage supply has been switched on.
The value range for the base frequency is 50 to 360 Hz.
