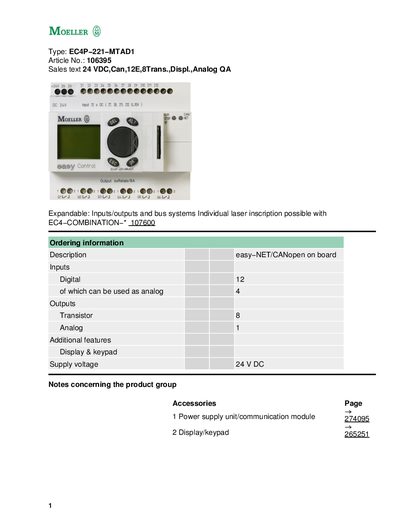

EC4P-221-MTAD1 is a product with 24V power supply, CAN bus communication, 12 digital inputs, 8 transistor outputs, 1 analog output, display screen and keyboard. It can be expanded with input/output and bus systems. Laser engraving can be customized.
The EC4P-221-MTAD1 is a compact controller with easy‑NET/CANopen communication, a display and keypad, and a range of digital and analog I/O. It offers 12 digital inputs (4 usable as analog), 8 transistor outputs, 1 analog output, and 6 relay contacts rated at 8 A each. The unit operates from a 24 V DC supply and includes optional expansion modules for additional I/O and bus connections.
The manual lists mechanical dimensions (107.5 × 90 × 72 mm), weight (0.32 kg), and environmental limits such as operating temperature –25 °C to 55 °C, storage –40 °C to 70 °C, and IP20 protection. Installation details cover mounting options, terminal capacities, and EMC considerations, while the specifications section provides electrical parameters, isolation ratings, and performance data for the real‑time clock and counters.
| Supply voltage | 24 V DC |
|---|---|
| Transistor outputs | 8 |
| Analog output | 1 |
| Relay contacts | 6 (8 A each) |
| Dimensions (W × H × D) | 107.5 × 90 × 72 mm |
| Weight | 0.32 kg |
| Operating temperature | -25 °C to 55 °C |
| Storage temperature | -40 °C to 70 °C |
It requires a 24 V DC supply.
Each relay contact is rated for 8 A.
The controller measures 107.5 mm × 90 mm × 72 mm (W × H × D).
