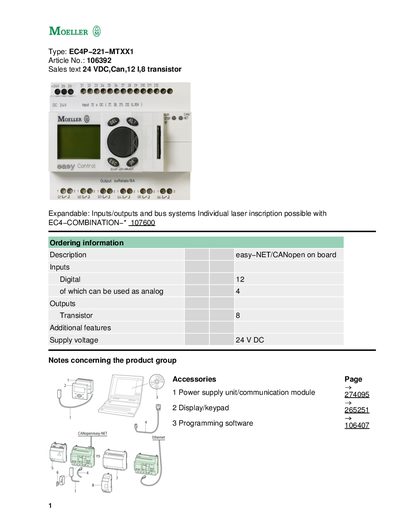

This document describes the features and characteristics of the EC4P−221−MTXX1 model, including expandability of inputs/outputs and bus systems, individual laser inscription capability, and supply voltage and other additional features.
This manual describes the EC4P‑221‑MTXX1 control unit, including its electrical characteristics, mechanical dimensions, and environmental limits. It covers installation, programming, and connection details for inputs, outputs, and bus systems such as easy‑NET and CANopen.
Key sections provide data on supply voltage, relay output ratings, dimensions, protection class, and compliance with IEC/EN standards. The document also outlines safety precautions, mounting options, and troubleshooting information.
| Relay outputs | 6 relays × 8 A |
|---|---|
| Dimensions (W × H × D) | 107.5 mm × 90 mm × 72 mm |
| Operating temperature range | -25 °C to 55 °C |
| Number of digital inputs | 12 |
| Communication interfaces | CANopen, easy‑NET, RJ45 |
The unit provides six relay outputs, each rated for 8 A.
The device measures 107.5 mm × 90 mm × 72 mm.
It can operate from –25 °C to +55 °C.
