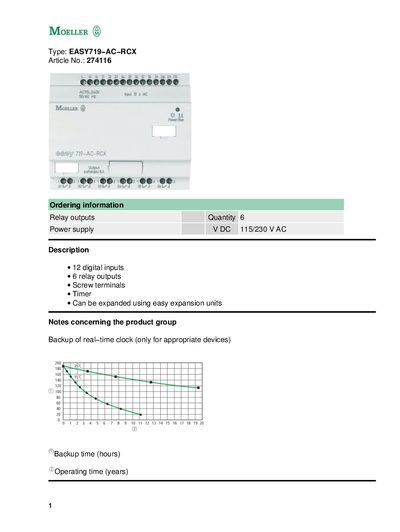

This document describes the features and characteristics of the EASY719-AC-RCX model, including 12 digital inputs, 6 relay outputs, expandability using easy expansion units, and support for real-time clock backup.
The Moeller EASY719-AC-RCX is a relay module featuring 12 digital inputs and 6 relay outputs. It supports a wide power supply range (115/230 V AC) and can be expanded with easy expansion units.
The document provides detailed technical specifications, environmental ratings, mounting options, and protection features such as IP20 rating and safe isolation for both AC and DC loads.
| Relay outputs | 6 |
|---|---|
| Digital inputs | 12 |
| Power supply | 115/230 V AC |
| Rated operational voltage | 100/110/115/120/230/240 V AC |
| Dimensions (W × H × D) | 107.5 mm × 90 mm × 58 mm |
It has 12 digital inputs.
The module operates from 100 V to 240 V AC (100/110/115/120/230/240 V AC).
