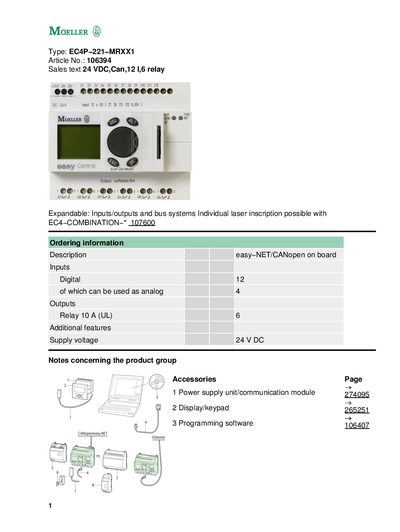

EC4P-221-MRXX1 is an easy-NET/CANopen controller that supports 12 digital inputs, 4 relay outputs, and a 24V DC power supply. It can be expanded with input/output and bus systems.
The EC4P-221-MRXX1 is a 24 VDC relay module with six relays rated at 10 A (UL) each. It offers digital inputs that can be used as analog inputs, CANopen/easy‑NET communication, and optional LCD display. The module supports expansion via bus and coupling modules and includes programming software and accessories such as a power‑supply unit and PC programming cable.
Technical data include dimensions of 107.5 × 90 × 72 mm, weight of 0.32 kg, operating temperature range from –25 °C to 55 °C, IP20 protection, and compliance with EMC standards EN 55011 Class B and EN 55022 Class B. The manual also covers mounting options, environmental conditions, power‑supply characteristics, and detailed input/output specifications.
| Supply voltage | 24 V DC |
|---|---|
| Relay current rating | 10 A (UL) |
| Number of relays | 6 |
| Dimensions (W × H × D) | 107.5 × 90 × 72 mm |
| Operating temperature range | -25 °C to 55 °C |
| EMC compliance | EN 55011 Class B, EN 55022 Class B |
The module operates from a 24 V DC supply.
The unit measures 107.5 mm × 90 mm × 72 mm.
It can operate from –25 °C up to 55 °C.
