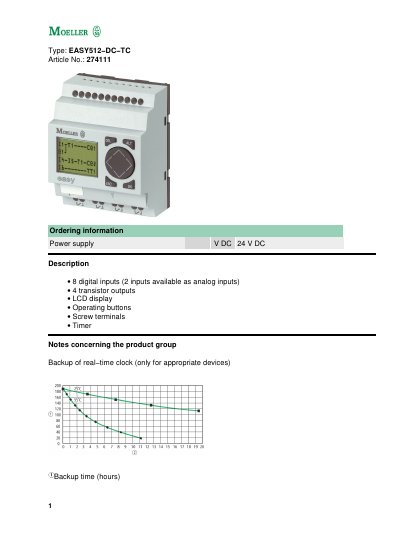

This document describes the features and characteristics of the EASY512-DC-TC model, including 8 digital inputs (2 inputs available as analog inputs), 4 transistor outputs, LCD display, operating buttons, etc.
The EASY512‑DC‑TC is an 8‑channel digital input module (2 channels configurable as analog inputs) with four transistor outputs, an LCD display, and operating buttons. It is designed for mounting on top‑hat rails or with screw brackets and includes a timer and screw terminals.
Key features include a 24 V DC power supply, operating temperature range of –25 °C to 55 °C, IP20 protection, and compliance with EN 55011, EN 55022 and IEC 60068 series standards. Detailed electrical, mechanical and environmental specifications are provided for integration into automation systems.
| Digital inputs | 8 (2 configurable as analog) |
|---|---|
| Transistor outputs | 4 |
| Power supply voltage | 24 V DC |
| Operating temperature range | -25 °C to 55 °C |
| IP protection rating | IP20 |
| Dimensions (W×H×D) | 71.5 mm × 90 mm × 58 mm |
| Weight | 0.2 kg |
| Mounting options | Top‑hat rail or screw fixing |
The module operates from a 24 V DC power supply.
It provides eight digital inputs, two of which can be configured as analog inputs.
The module can operate between –25 °C and 55 °C.
