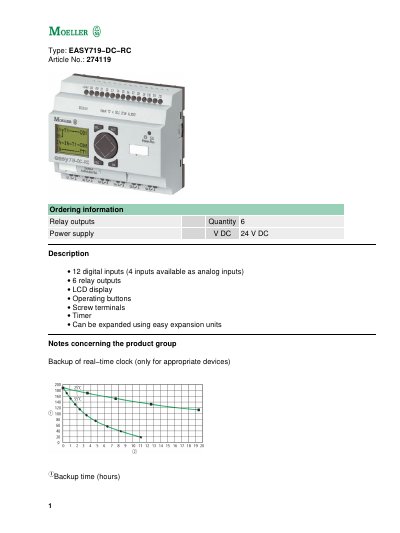

EASY719-DC-RC type relay module, 24 V DC power supply, 12 digital inputs, 4 digital inputs can be used as analog inputs, 6 relay outputs, with LCD display, operating buttons, screw terminals, timer, can be expanded by easy expansion units.
The EASY719-DC-RC is a 6‑relay output module with 12 digital inputs, of which four can be configured as analog inputs. It features an LCD display, screw‑terminal connections, and optional expansion via easy expansion units.
The manual lists mechanical dimensions, environmental limits, electrical characteristics, and EMC compliance, enabling proper installation and reliable operation in industrial control applications.
| Relay outputs | 6 |
|---|---|
| Digital inputs | 12 (4 can be analog) |
| Power supply voltage | 24 V DC |
| Operating temperature range | -25 to 55 °C |
| Storage temperature range | -40 to +70 °C |
| Protection rating | IP20 |
| Dimensions (W×H×D) | 107.5 × 90 × 58 mm |
| Weight | 0.3 kg |
The module provides six relay outputs.
It can operate from –25 °C to 55 °C.
Yes, four of the twelve digital inputs can be configured as analog inputs.
The module requires a 24 V DC supply.
