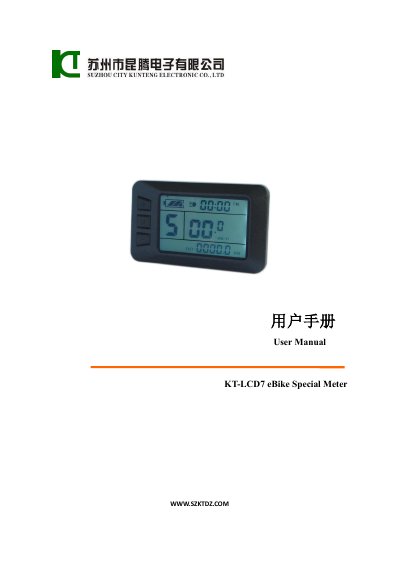

User manual for the KT KT-LCD 7 eBike Special Meter covering installation, operation, display functions, and parameter settings.
This manual provides instructions for the installation and operation of the KT KT-LCD 7 eBike Special Meter. It details the physical setup, including wiring schematics and mounting on handlebars, as well as the removal of the protective film from the display panel.
The document explains the meter's various functions, including trip time, speed, distance, battery capacity, and power-assist status displays. It also covers normal operation procedures such as turning the device on/off, switching between display interfaces, and using the cruise and Bluetooth functions. Additionally, it provides a comprehensive guide to user project settings, including motor characteristics, wheel speed pulse signals, power-assist control modes, and throttle startup configurations.
| Supply Voltage | 24V, 36V, 48V |
|---|---|
| Main Material | PC material |
| Housing Color | dark gray |
Hold the SW button long to power on the meter and controller; hold it long again to power them off.
The meter will automatically shut down and cut off the power supply to the electric vehicle.
Under normal operation, hold the UP or DOWN button to switch the power-assist ratio gear (ASSIST).
