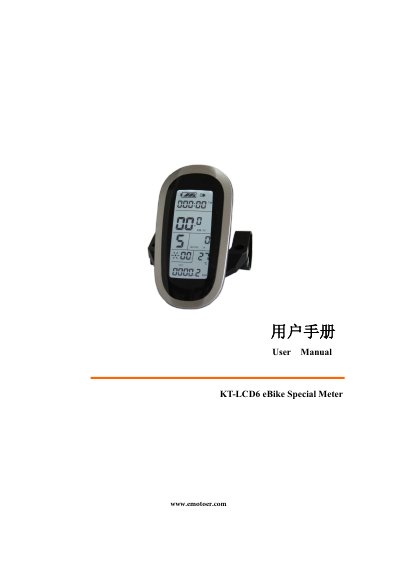

KT KT-LCD 6 eBike Special Meter User Manual

About this manual

The KT KT-LCD 6 is an electric bicycle meter designed to display vehicle controls and status information. It supports automatic identification of supply voltages including 24V, 36V, and 48V. The device features a button box with UP, SW, and DOWN keys for navigating through various displays such as trip time, speed, distance, battery capacity, motor power, and temperature.

What's inside

• Outlook and Size
• Wiring Schematic
• Installation Instruction
• Function Overview
• Display Content
• Button Definition
• Normal Operation
• User Project Setting
• Parameter Copy
• Version Information

Specifications

Frequently asked questions

How can I restore the factory settings?

Enter the C parameter setting menu and select option C10 to automatically restore the default factory settings.

What handlebar diameters are supported for installation?

The meter is designed for installation on handlebars with diameters of 31.8 mm or 22.2 mm.

Which supply voltages are compatible with this meter?

The meter can automatically identify and is compatible with 24V, 36V, or 48V supply voltages.

How long must the vehicle be stopped without button operation for the meter to shut down automatically?

The meter will automatically shut down if the vehicle is stopped without any button operation for five minutes.
