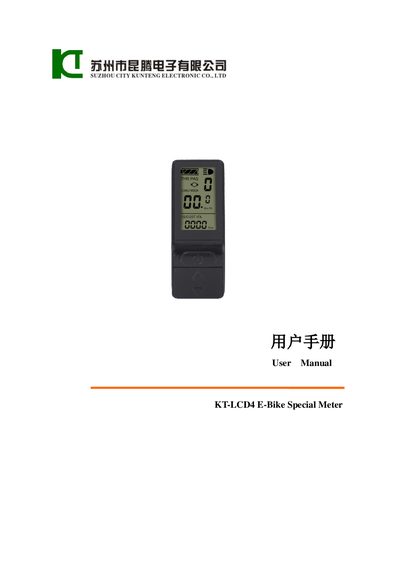

KT KT-LCD 4 E-Bike Special Meter User Manual

This user manual covers installation, operation, parameter settings, and error code information for the KT KT-LCD 4 E-Bike Special Meter.

Brand: K&T
Category: Electric cars
Document type: User Manual
Language: English
Pages: 45
File format: PDF
File size: 1.5 MB
Published: 16 October, 2026
Updated: 16 October, 2026
Model: KT-LCD 4
MD5 checksum: BDE55F056CB91C726B22F4A1FC44D6AC
PDF: KT KT-LCD 4 E-Bike Special Meter User Manual PDF

About this manual

The KT KT-LCD 4 E-Bike Special Meter is an electric bicycle display unit compatible with 24V, 36V, and 48V supply voltages. It provides digital displays for trip speed, distance, battery capacity, voltage, and brake status, along with controls for throttle, power assist ratio, cruise function, and backlighting. The meter features automatic shutdown after five minutes of inactivity to conserve power.

What's inside

Preface
Outlook and Size
Wiring Schematic
Installation Instruction
Function Overview
Display Content
Normal Operation
User Project Setting
Parameter Setting
Error Code Display

Specifications

Supply Voltage	24V, 36V, 48V
Handlebar Diameter	22.2mm
Material	PC material
Housing Color	Black
Auto Shutdown Time	5 minutes

Frequently asked questions

How do I turn the meter on and off?

Hold the button (SW) long to power on the meter and enter normal operation, and hold it long again to power off.

What happens if I do not operate the meter for five minutes?

The meter will automatically shut down, and the power supply of the electric vehicle will be powered off.

Can the meter identify different battery voltages automatically?

Yes, the meter can automatically identify and be compatible with 24V, 36V, and 48V supply voltages.

Download PDF (1.5 MB)
