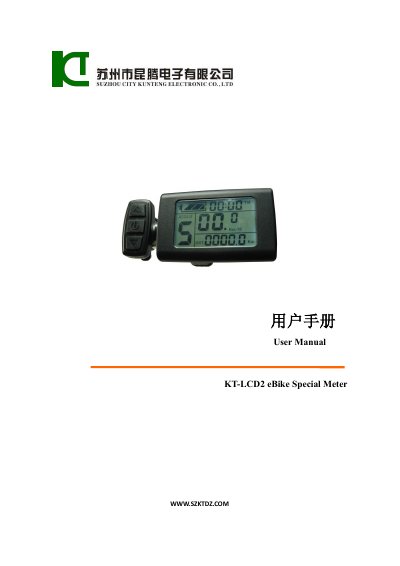

KT KT-LCD 2 eBike Special Meter User Manual

About this manual

The KT KT-LCD 2 is an electric bicycle meter designed to display vehicle status and provide power assist control. It features a dark gray PC material housing and supports automatic identification of 24V, 36V, and 48V supply voltages. The device includes functions for displaying trip time, distance, speed (real-time, maximum, average), battery capacity, and fault codes.

What's inside

• Outlook and Size
• Installation Instruction
• Function Overview
• Display Content
• Button Definition
• Normal Operation
• PAS Ratio Gear Switch
• Power Assistant Push Function
• Battery Capacity Indicator
• User Project Setting

Specifications

Frequently asked questions

What supply voltages can the meter automatically identify?

The meter can automatically identify 24V, 36V, and 48V battery capacities when used with the specified controller.

How long must the vehicle be stopped without button operation for the meter to shut down automatically?

The meter will automatically shut down and cut power to the electric vehicle after five minutes of no button operation while the vehicle is stopped.

What is the maximum speed limit for the 6Km/H power assist push function?

When the assist function is active, the vehicle drives at a speed of no more than 6Km/h.
