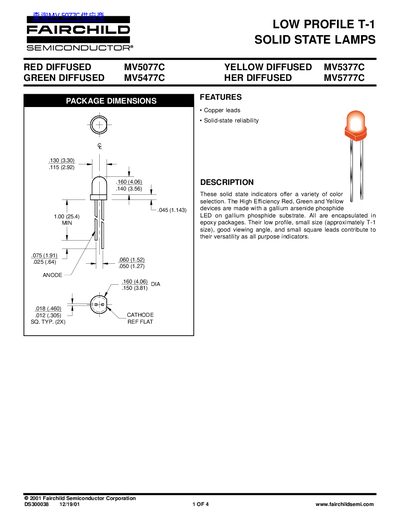

Datasheet for Fairchild MV5077C low‑profile T‑1 solid‑state lamp showing electrical, optical characteristics and ratings.
The Fairchild Low Profile T‑1 Solid State Lamps are available in red, yellow, green, and amber diffused versions (MV5077C‑MV5777C). They feature a compact T‑1 size, copper leads, and a wide viewing angle, making them suitable for general‑purpose indicator applications.
The datasheet provides detailed electrical and optical specifications, absolute maximum ratings, and typical performance curves, along with soldering and temperature limits. A disclaimer notes that Fairchild products are not authorized for life‑support devices without explicit approval.
| Typical Luminous Intensity (mcd) MV5077C | 1.8 |
|---|---|
| Typical Forward Voltage (V) MV5377C | 2.1 |
| Peak Wavelength (nm) MV5477C | 565 |
| Viewing Angle (°) all models | 140 |
| Power Dissipation (mW) | 105 |
| Continuous Forward Current (mA) MV5377C | 35 |
| Maximum Reverse Voltage (V) | 5 |
| Operating Temperature (°C) | -55 to +100 |
The typical forward voltage for the MV5377C is 2.1 V at 20 mA.
The lamps are rated for operation from –55 °C to +100 °C.
The MV5477C green diffused lamp has a peak wavelength of 565 nm.
