This document describes the features and characteristics of a BIPOLAR T-1 3/4 (5mm) LED LAMP - DIFFUSED product.

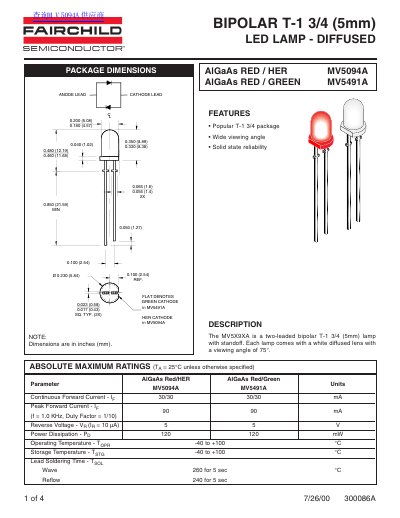

This document is a datasheet for the Fairchild MV5X9XA series of bipolar T-1 3/4 (5mm) LED lamps with a white diffused lens. It provides detailed electrical and optical characteristics for two specific part numbers: the MV5094A (AlGaAs Red/HER) and the MV5491A (AlGaAs Red/Green). The document includes typical performance curves, radiation diagrams, and recommended soldering profiles.
| Peak Forward Current | 90 mA |
|---|---|
| Reverse Voltage | 5 V |
| Power Dissipation | 120 mW |
| Operating Temperature | -40 to +100 °C |
| Viewing Angle | 75° |
| Peak Wavelength (MV5094A) | 660 nm |
| Peak Wavelength (MV5491A) | 635 nm |
The lamps come with a white diffused lens with a viewing angle of 75°.
The maximum temperature for wave soldering is 260°C for 5 seconds.
The maximum temperature for reflow soldering is 240°C for 5 seconds.
